2011
IQ Race Sled
All recommendations on this page were based at an elevation of
0-2000ft |
 |
EPI Primary clutch springs
$24.95
We recommend 165/310 for the 440 and 185/320 or 190/335 for the 600's
|
|
|
Team Primary clutch springs
$24.95
|
|
|
Polaris Primary clutch
springs $34
|
 |
Polaris primary clutch
weights $66-$99 (set of 3)
We recommend S49H for the 440 and 10-60 for the 600's
(Polaris charges more for the 49's)
|
 |

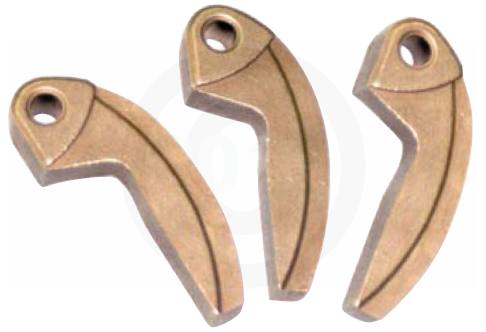

Team Polaris primary clutch
weights $79.99 (set of 3)
We recommend 10-58 to 10-62 for the 600's with the 10-60
being our favorite
|
 |
EPI Belly Busters Polaris
primary clutch weights $117.95 (set of 3)
We recommend 10-58 to 10-62 for the 600's with the 10-60
being our favorite
|
 |
EPI Secondary clutch springs
for Team Clutches $24.95
We recommend 140-200 or 140-220 for the 440 and 160/240 for the 600's
|
|
|
Team Secondary clutch springs
for Team Clutches $24.95
We recommend 140-200 or 140-220 for the 440's and 160-240 for the 600's
|
|
|
Polaris Secondary clutch
springs for Team Clutches $32.95
We recommend 140-200 or 140-220 for the 440's and 160-240 for the 600's
|
 |
Delrin Washers $10.95
Eliminates friction from spring contact with retaining cup in Team
secondary clutches. Sold in a 3 pack
(our recommendations are to put 2 under the spring
retainer cup)
|
 |
Team TSS-98 & TSS-04
secondary helix with reverse $109 (for 600's)

TSS-98
TSS-04
|
|
 |
Cambridge Polaris IQ primary clutch
puller $39.95
|
 |
EPI Polaris IQ primary clutch
puller $59.95
Heat treated steel-High Quality
|
|
 |
Polaris IQ racer Clutch
alignment tools
TSS98 $109.50, TSS04 & Tied $145.50
works on 05-09 IQ racers + 600RR (close, but not actual picture)
|
|
  |
Clutch Press Service Tool
$99.95
Works on Arctic Cat drive/driven clutches (except Diamond
Drive driven), Polaris drive/driven clutches (including ATV, P2, TEAM
Rapid), Yamaha drive/driven clutches.
•Revolutionary drive and driven clutch
servicing is designed specifically compressing and holding springs for
ease of assembly and disassembly
•Can be used for field testing or production clutch repair on the shop
bench
•High-quality metal construction with powder coated finish and UHMW
plastic wear patches and fingers provides a quality, functional tool
that is extremely durable
•Use with PART #SLP20128 to change springs easily in Rapd Reaction
Clutches
•Slide adapters over the SLP Clutch Press FIngers and go to work
•Non-stick rubber bumpers provide maximum control
|
 |
IQ 440 Motor Mounts $23.26ea
Many of the motor mounts used on the '05-'07 IQ 440's
warp and are no longer centered up. If your having belt problems or
cant get the clutches to align then check yours.
|
|
 |
Clutch spider tool $55.95
Works on most Polaris sleds with P85 or P95 clutches including all IQ racers
(close, but not actual picture)
|
|
 |
Clutch spider jam nut tool
$69.95
Works on most Polaris sleds with P85 or P95 clutches including all IQ racers
(close, but not actual picture)
|
 |
Team secondary clutch L tool
$8.99
Works on all Team clutches made for Polaris
(close, but not actual picture)
|
 |
|
|
|
|
 |
|
 |
|
 |
Team Hyvo Top Gears $34.95
(15T internal & 3/4" wide)
|
|
|
Team Hyvo Bottom Gears $59.95
(15T internal & 3/4" wide)
|
 |
Team Hyvo Chain $84.95
(3/4" wide)
|
 |
Gearing Chart 1 top
gear 21-25
Gearing
Chart 2 top gear 17-21
Gearing Chart 3
top gear 19-26 and bottom 37-46
Once the picture loads click on it to make it large and clear. |
|
 |
Polaris 6205-2RS chain case
bearing $18.25
Fits all IQ race sleds and 600rr.
|
|
 |
NTN 6205-2RS chain case
bearing $16.95
Fits all IQ race sleds and 600rr.
|
|
 |
|
|
 |
Polaris IQ Chain case $81.45
fits '04-current race sleds and the 600RR
These chain cases are know for breaking around the lower bearing
retaining clip
|
|
 |
Polaris IQ Chain case drain
plug $4.50 fits '05-current race sleds, 600RR and most of
the rest of the Polaris sleds
|
|
 |
Chain Case Seal $8.99
(there are 2 in the chain case, one upper and one lower)
Fits all IQ race sleds and 600rr plus most other Polaris sleds.
|
|
 |
Polaris Jackshaft bearing $18.95
(just behind the clutch)
The outer race is radiused with holes for grease to enter.
Fits all IQ race sleds and 600rr.
|
|
 |
NTN Jackshaft bearing $29.95
(just behind the clutch)
The outer race is radiused with holes for grease to enter.
Fits all IQ race sleds and 600rr.
|
|
 |
Polaris Axel bearing $33.09
(just below the secondary clutch on the axel)
The outer race is radiused with holes for grease to enter.
Fits '05-'07 race sleds and 600rr.
|
|
|
Polaris Axel bearing $64.26
(just below the secondary clutch on the axel)
The outer race is radiused.
Fits all '08-current IQ 600 race sleds.
|
|
 |
Axel Bearing cover with
grease zerk and speedo adaptor $71.91
Fits all IQ race sleds and 600rr plus many other Polaris sleds.
Speedometer key and gasket sold separately
|
|
 |
Axel bearing cover gasket
$1.80 (part number 31)
Fits all IQ race sleds and 600rr plus many other Polaris sleds.
|
|
|
Speedomoter key $7.49
(part number 30)
Fits all IQ race sleds and 600rr plus many other Polaris sleds.
|
|
|
|
|
|
|
|
Sign up for our IQ email list and keep informed when we
add new products or tech notes.
|
|
